Hi-Tech 6" Trim Saw with two blades included, variable speed

In Stock
$1,375.00

13 units in stock


Available Options


Calculate Shipping



Pick-up from store (not shipped) - $0.00
Pickup from our Warehouse in Glen Innes by appointment only. Please advise date/time in order comments.

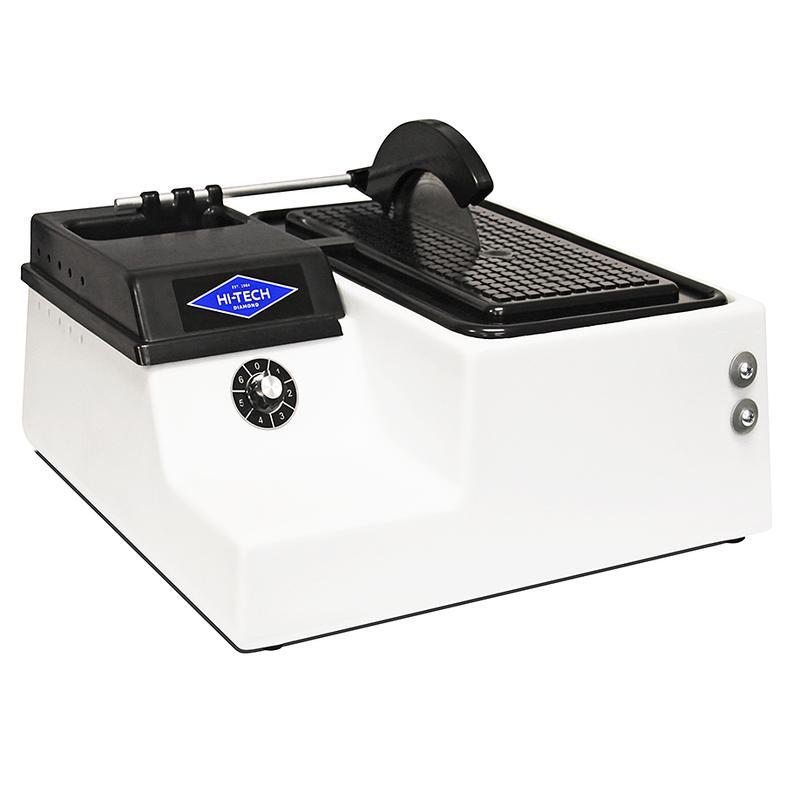

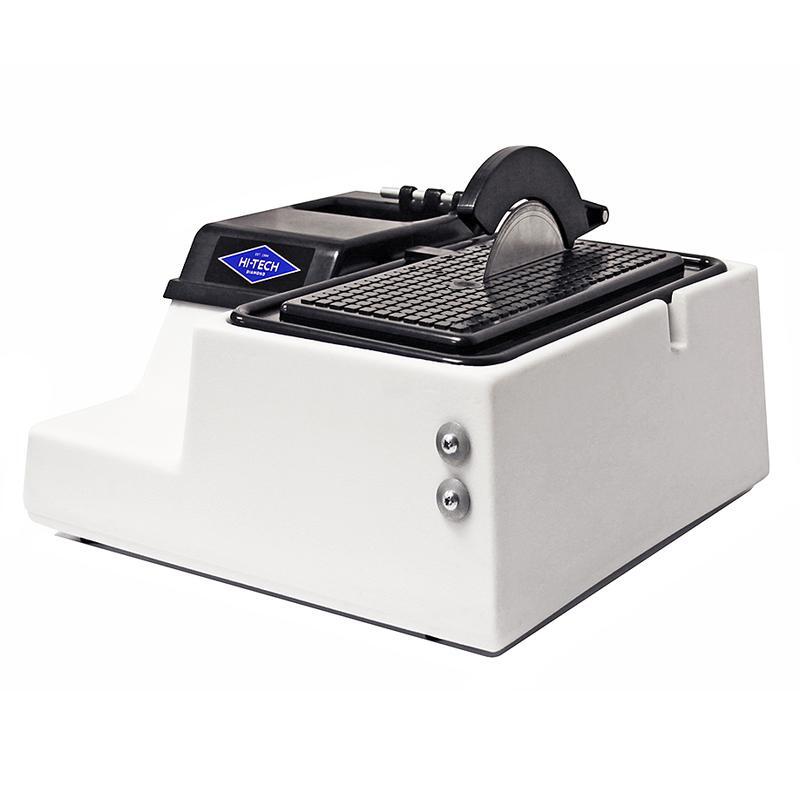

This American-made 6″ trim saw is the perfect saw for trimming-out cabochon preforms in rocks, minerals and glass, or to cleanly trim facet material.

This saw includes TWO different types of 6″ saw blades to best-suit your cutting material; one economy silver notched diamond saw blade and one premium, long-lasting red sintered diamond saw blade.

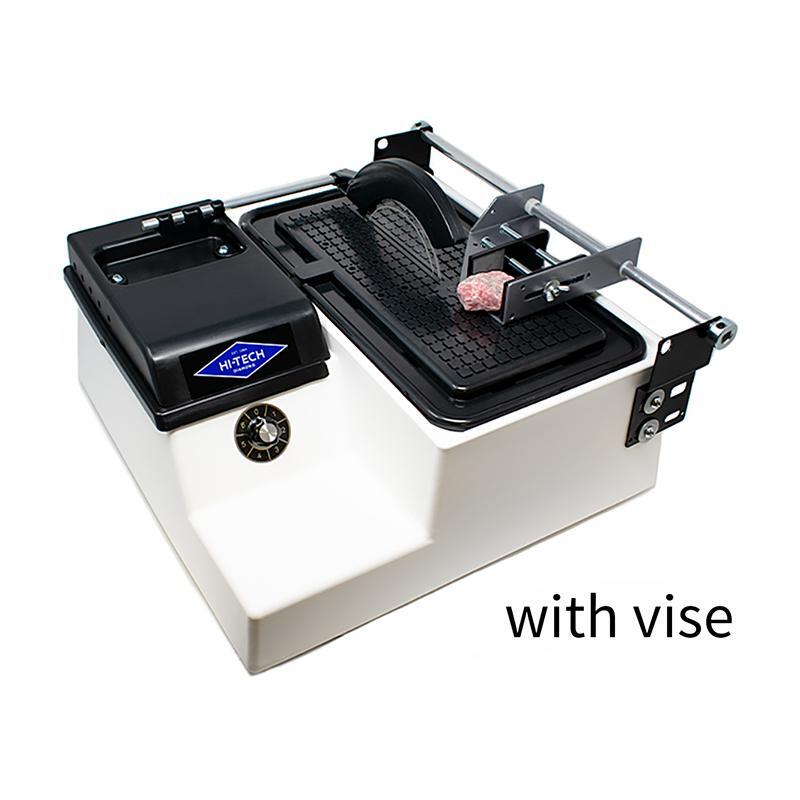

Sliding vise is included as a default option - select the other option from drop-down list if you want to remove the vise.

The Hi-Tech Diamond 6" trim saw is manufactured with a 5/8" arbor and will accept any 6" saw blade that has a 5/8" arbor. The saw table has a large work area, measuring 15-1/2" L X 9" W (390 mm x 225 mm). The housing is made of unbreakable, cross-linked polyethylene that makes it rustproof and easy to clean. No raised lip around the saw table makes it ideal for glass workers as well as lapidary trimming work.  Robust construction and compact design.

Approximately 40 mm cutting depth - generous for a 6 inch saw.

Installed in each saw is a 1/4 hp, heavy-duty, direct drive permanent magnet motor with sealed ball bearings. The motor is variable speed and can deliver speeds from 800 to 3,400 rpm.  Motor suitable for Australia power supply with local 3 pin plug fitted.

The coolant reservoir is built right into the base of the machine and can hold up to 16 ounces of water. The removable saw table that covers the reservoir makes cleanup easy. The splash guard that comes with the machine keeps water off you and on your piece, making it easier for you to work.

NOTE:  this is packed in a large box which cubes up to 19kg.  Footprint of the saw is 435 mm L x 435 mm W x 280 mm H

Package includes:

  • 6" x .012" x .015" silver notched diamond saw blade
  • 6" x .015" x .023" red sintered diamond saw blade
  • Black spray shield
  • Allen wrench
  • Hi-Tech Diamond waterproof apron
  • Complete written and visual instruction manual

NB: This is a TRIM SAW and you must follow the instructions of 20 minutes on/20 minutes Off to allow for cooling.

12 month warranty supported by Aussie Sapphire as exclusive Hi-Tech dealer in Australia.

(943)

SKU 943
Brand Hi-Tech
Shipping Weight 8.9000kg
Shipping Width 0.550m
Shipping Height 0.300m
Shipping Length 0.550m
Shipping Cubic 0.090750000m3
