10" Lortone TS10 Trim Saw, Complete With Motor and Blade

In Stock
$2,250.00

12 units in stock


Customise Your Purchase

Customise Your Purchase

10" x 0.032" Silver Series Diamond Blade (Continuous Rim)

10" x 0.032" Silver Series Diamond Blade

$130.00

QTY
10" x 0.032" x 5/8" U303 Ukam Professional Continuous Rim

10" x 0.032" x 5/8" U303 Ukam Profe

$155.00

QTY
10" x 0.032" x 5/8" MK303 Diamond Lapidary Blade for cutting stone or glass

10" x 0.032" x 5/8" MK303 Diamond L

$170.00

QTY
10" x 0.040" x 5/8" MK301 Gemking Diamond Blade (250mm diameter)

10" x 0.040" x 5/8" MK301 Gemking D

$180.00

QTY
Sliding Trim Saw Vise to suit Lortone TS10 or FS8 or similar saws

Sliding Trim Saw Vise to suit Lortone TS10 or FS8

$110.00

QTY

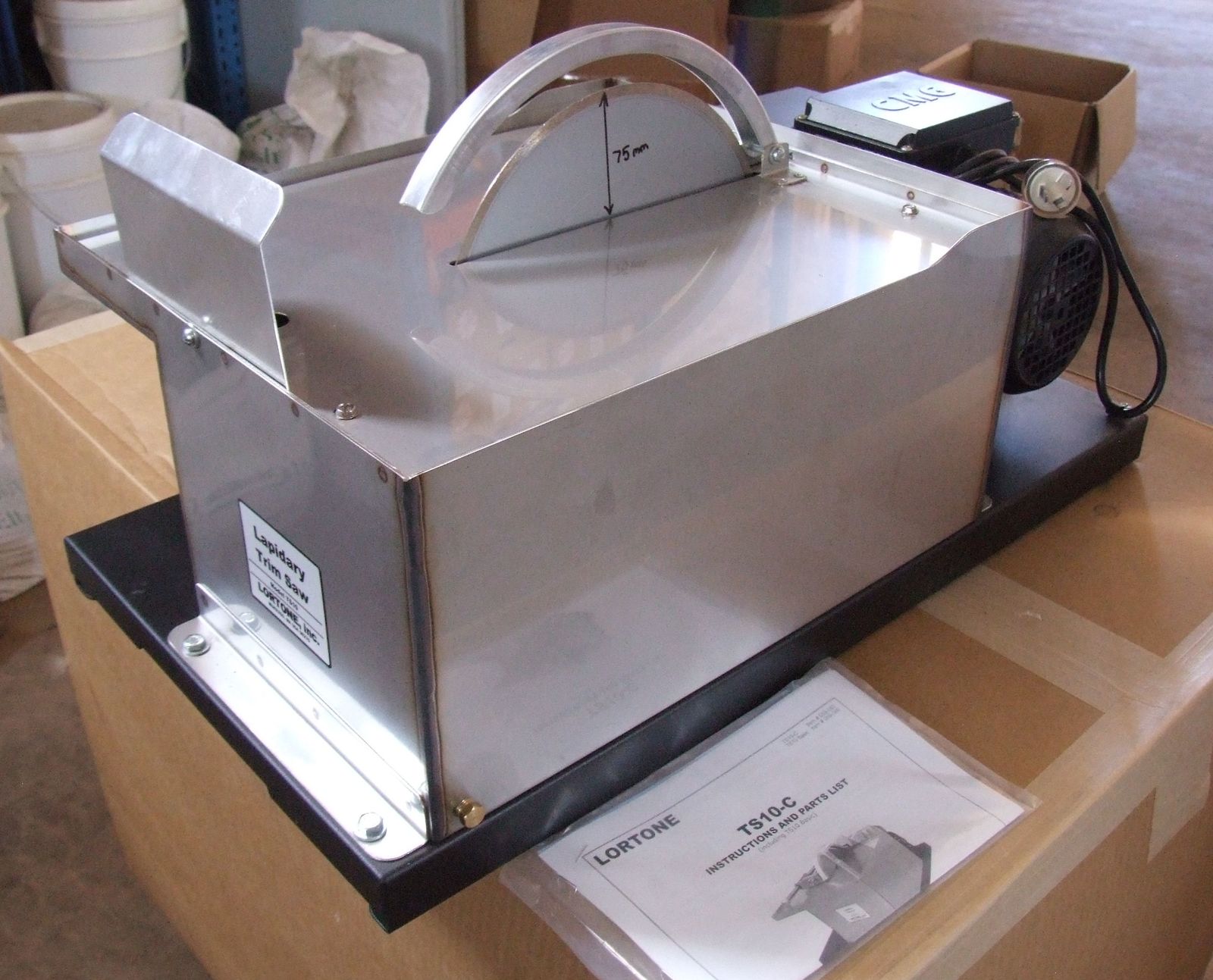

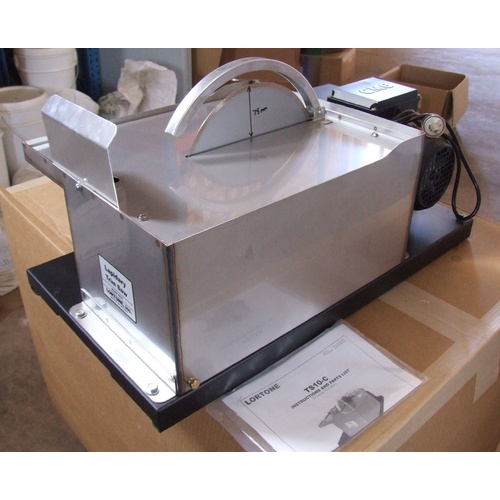

TS10 saw - Complete with motor/blade and ready to use.

Fitted with our Quality 1/2hp 240v Motor, full belt guards and premium quality diamond blade.

NOTE: fitted as standard with Silver Series Continuous Rim (sintered) blade - adjust options above to add a UKAM blade or MK303 or 301 (where stock permits).

Mounted on a Fully Powder Coated Steel Base.
TS-10 Lortone footprint on bench is: 720mm long x 420mm wide.

The TS10 is a 10" heavy duty trim saw from Lortone and is an excellent quality piece of machinery.  Depth of cut is 3 inches or 75mm.

It features an all new stainless steel base for smooth working across the table.  The work table has a 14-1/4" x 16-5/8" work surface and centered blade.  Stainless construction means no rust problems although we still recommend emptying the tank after use.

You will require almost 2 litres of coolant in the tank when using this saw.  We recommend Rockound Oil or similar light mineral oil.

We recommend a suitable cutting oil in this size of saw.  If you choose to use water, we recommed adding a coolant concentrate but oil will perform better.

Includes a sealed ball bearing arbor, arbor pulley, 5/8" steel shaft, splash shield, and blade guard, Motor and quality sintered continuous rim blade blade.

Aussie Sapphire is an Australian Master Importer For Lortone Corporation In the USA - that means we buy and sell the most machines in Australia. As Master Importers, all our customers can be guaranteed the very Best Support and Advice.  We are also Authorized to carry out any Lortone Warranty work in our own on site Workshop if required.

Manual Sliding Vise is an Optional Extra - please add using the option above if you require this feature (CURRENTLY OUT OF STOCK).

(488)

SKU 488
Brand Lortone
Shipping Weight 29.0000kg
Shipping Width 0.800m
Shipping Height 0.550m
Shipping Length 0.600m
Shipping Cubic 0.264000000m3

Terrific trim saw!

By: on 15 September 2020
I recently bought the TS10 trim saw along with the perspex hood, sliding vise, and a container of Rockhound oil. The saw runs smoothly, the perspex hood takes care of stray oil spatter without diminishing control/visibility of the stone being cut, and the 10" Auscut blade is doing a great job on the agates I'm currently slabbing. I'm using straight Rockhound oil as the coolant and find it works better than the kero/oil mix used by my local lapidary club, with the added benefit of it being virtually odourless and much safer in general. No regrets with this purchase, wish I'd done it years ago. Thanks for the quick delivery!
