Auscut AS-6x6R Cabbing Machine, REZ Wheels Fitted
Rated 5/5 based on 1 reviews.
In Stock
$2,275.00
17 units in stock

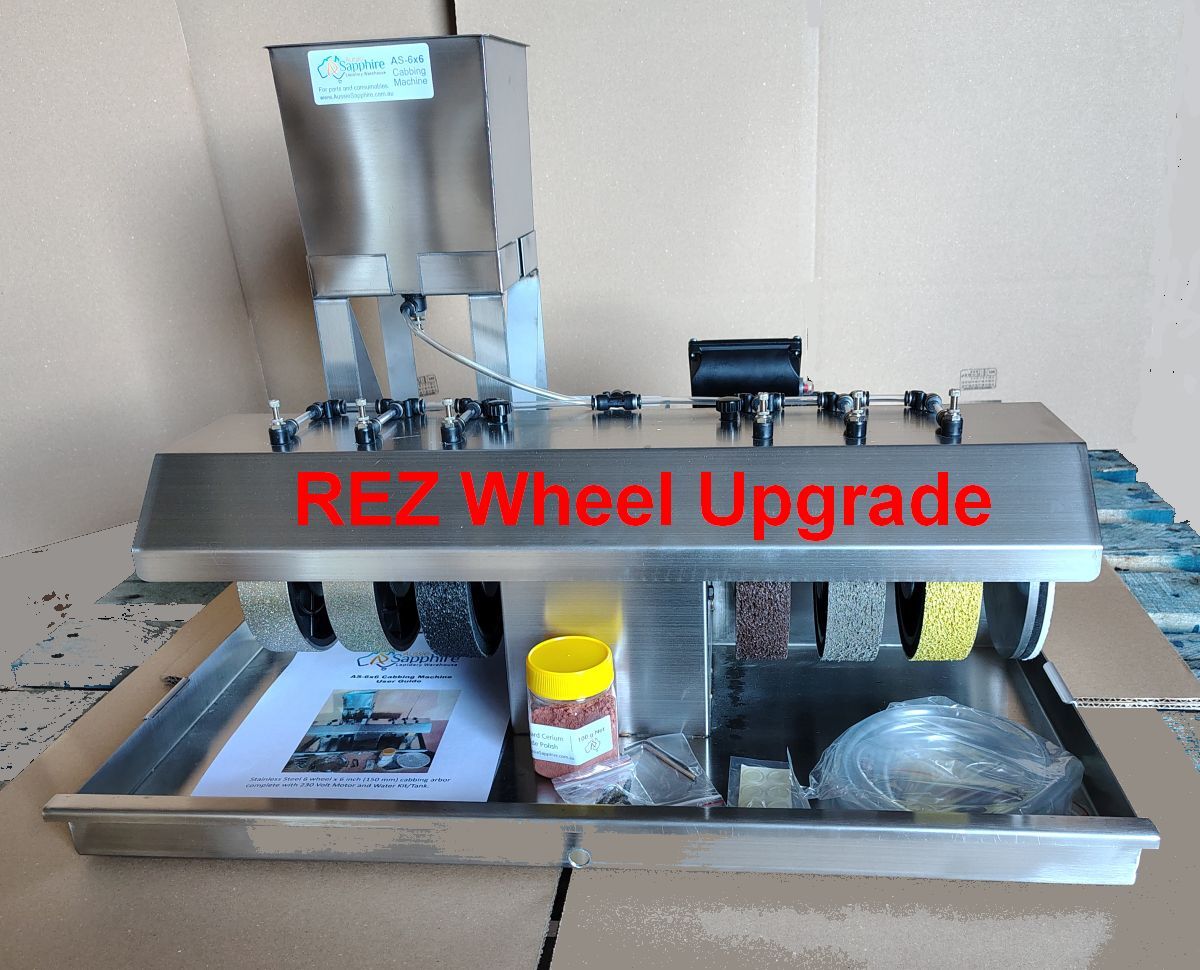

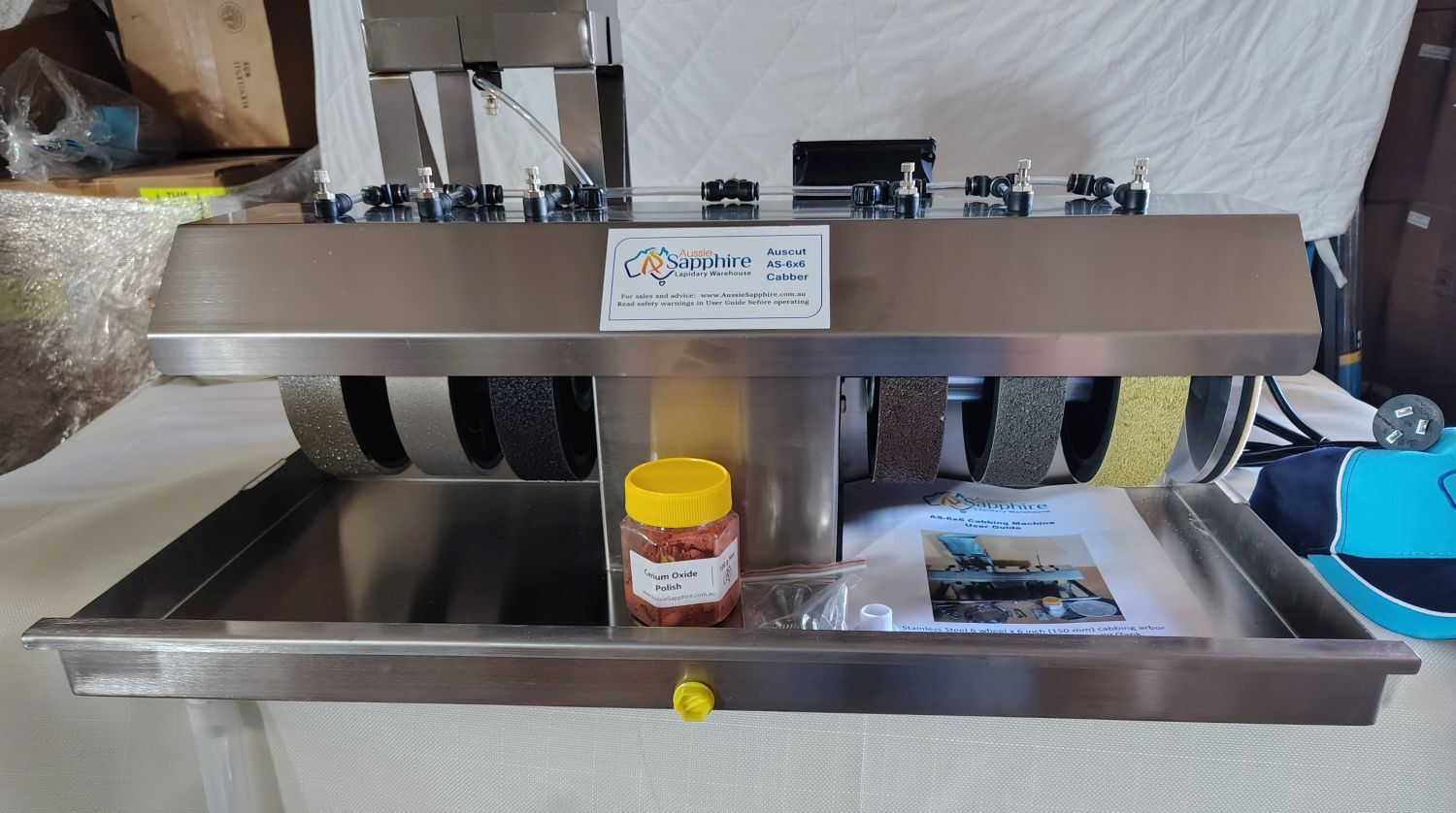

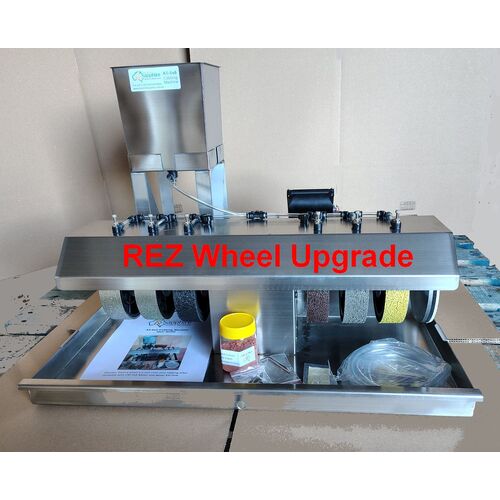

Auscut AS-6x6 Cabbing Machine complete with REZ wheels
Stainless Steel, 6 wheel x 6" (150mm) Arbor
REZ wheels now in stock.
Wheel Options: This listing is for the machine fitted with REZ wheels. See the other listings if you want Standard or Nova wheels.
The Auscut AS-6x6 is an Aussie Sapphire product - proudly assembled and tested in our own workshop using local and imported parts. Manufactured exclusively for us to our design and specifications.
Proven design using CNC manufacturing to produce the full Stainless Steel frame with consistent quality of all parts. All assembly and test running is carried out in our workshop giving us another quality control point.
FEATURES:
- 6 individually controlled stainless water taps fed from a separate stainless steel 4 litre water tank (included).
- Full stainless steel construction with a precision machined 3/4” shaft that is tapped on both ends for 1/4-20 spin-on end plates for the Left or Right hand side.
- Sealed for life flex mount bearings are fitted for reduced noise and vibration.
- Large diameter aluminium spacers are fitted for optimal wheel fitting and running.
- The removable top cover has the water kit installed with quality taps and fittings.

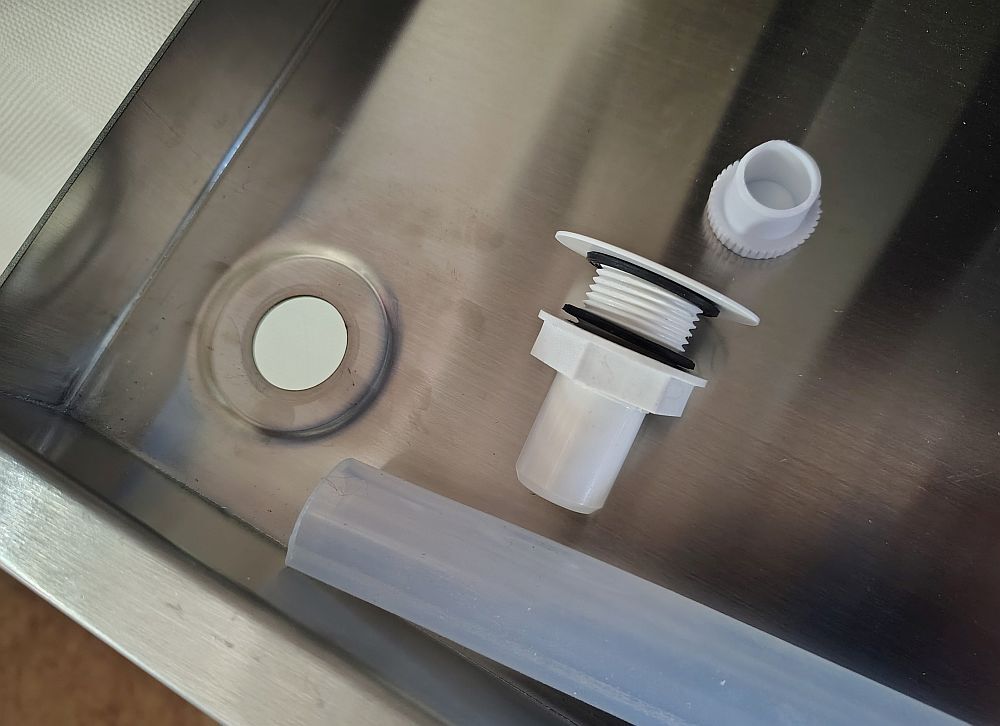

- Drainage hose with flush fitting outlet for easy cleaning is included - you will need to supply a bucket to drain into.

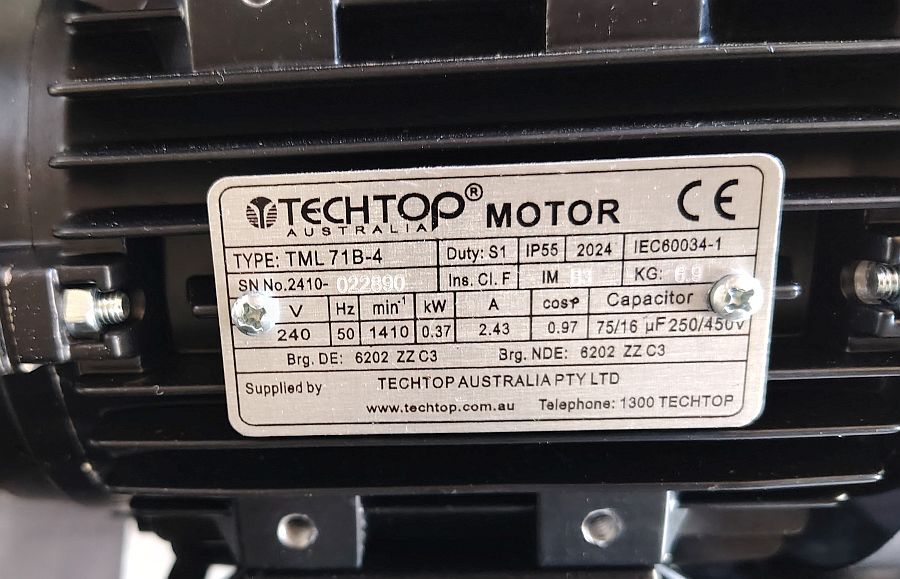

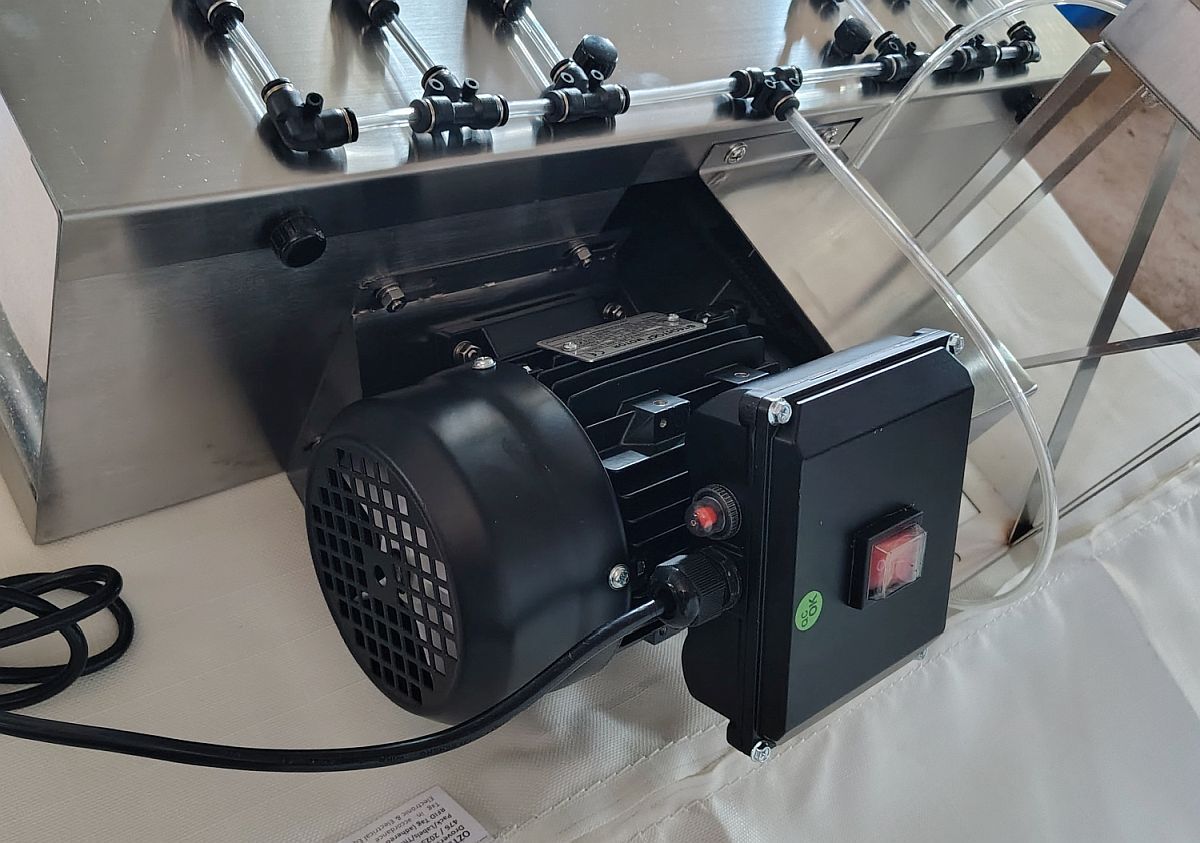

- 1/2 hp motor (230 Volt) with Australian 3 pin plug and On/Off switch on top of motor.
- Taperlock cast pulleys keyed to both the machine shaft and motor shaft.

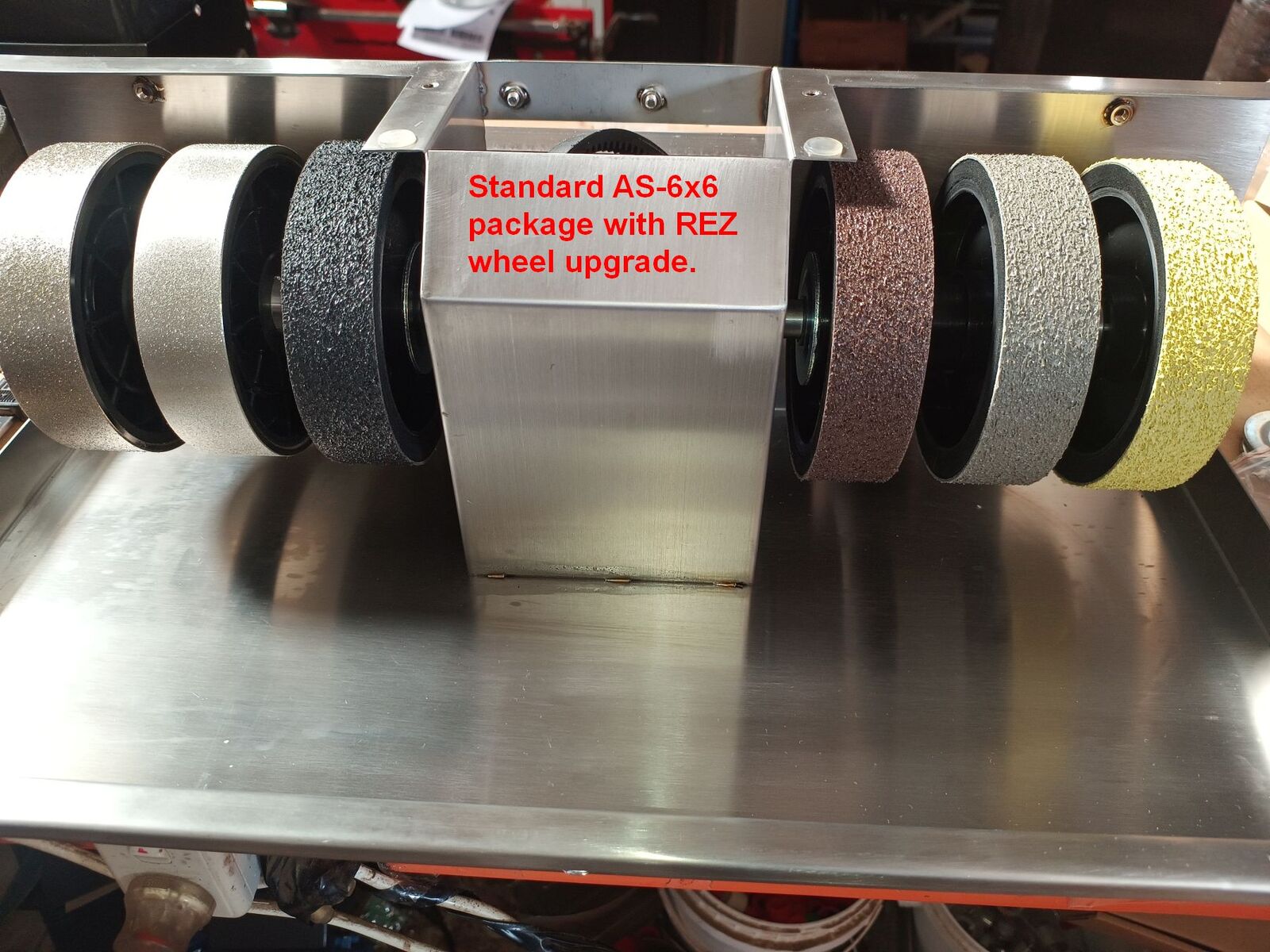

- Fitted with 6 x Auscut 6" diamond wheels - 2 hard (#80 and #220) and 4 soft REZ wheels (#280, #600, #1200 and #3000).
- Includes one Right Hand end plate with felt polishing pad and 100 grams of cerium oxide polish.
The AS-6x6R unit comes complete with motor, quality cogged drive belt, belt guard and taper lock motor pulley. The motor is shipped separately for safe transit and will need to be fitted when unpacked (see our set up video).
NOTE: The machine is fitted with 6 diamond wheels (150 mm) ready to go - two hard wheels (#80 and #220) and four soft REZ wheels (#280, #600, #1200 and #3000). Rez wheels are a commercial grade diamond wheel with thicker and more durable resin bond meaning longer life when used correctly. Note that Rez wheels are very much like Nova wheels with a rougher surface and will need a longer break in period compared to the standard wheels.
Auscut REZ diamond wheels are an upgrade from our Standard wheels and have the same hub width as Nova wheels so are completely interchangeable with either genuine Novas, Cabking or Auscut Standard wheels . This means you can change wheels on your machine at any time without having to modify spacers.

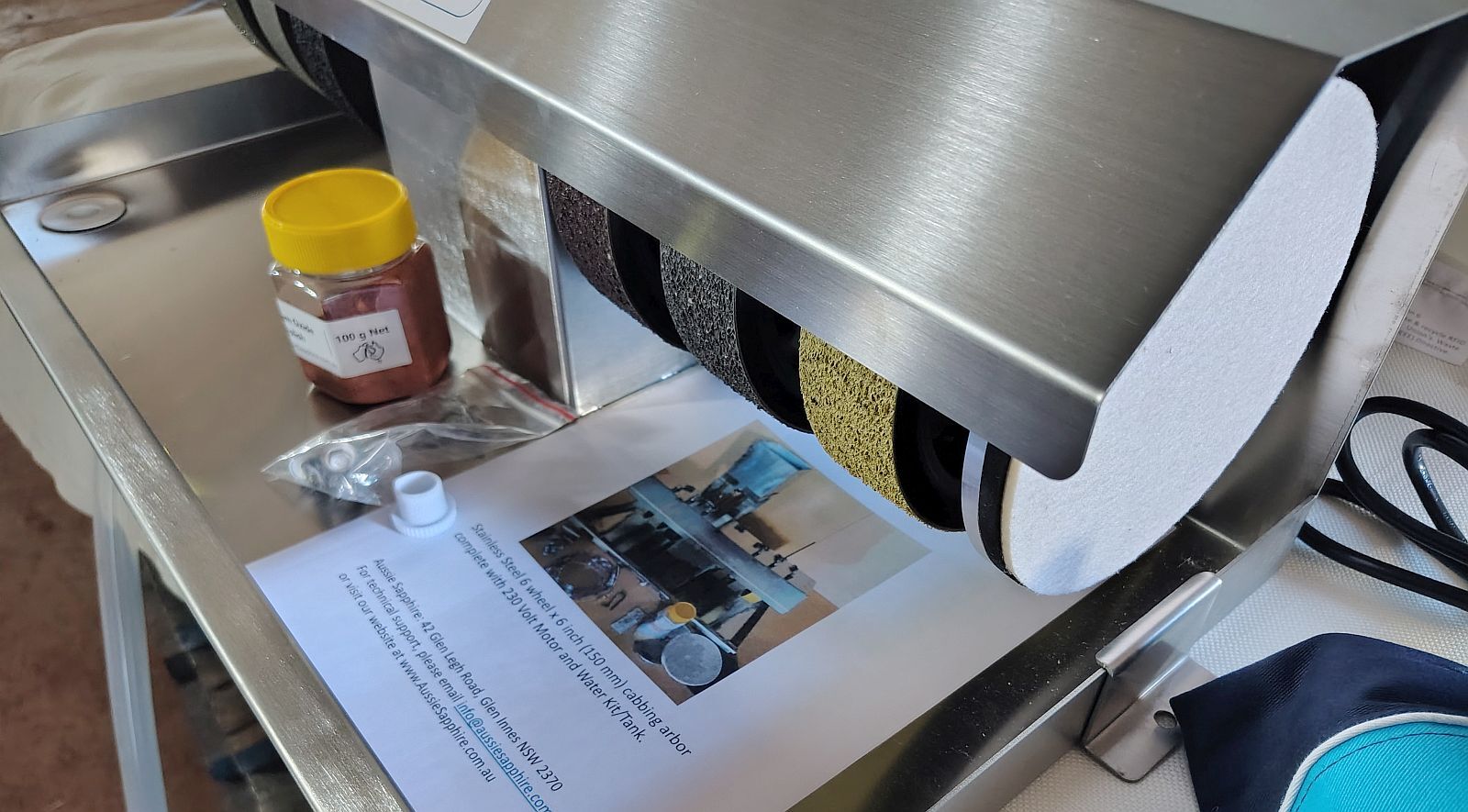

The package also includes a Right Hand aluminium end plate with rubber and felt pad for polishing - 100 grams cerium oxide is included.
See the links below if you need to add a water supply to the end plate or other accessories.
All you need to do is bolt the motor on, secure the machine and water tank to a bench and start cabbing.
Footprint of the machine is 67cm wide and 57 cm deep - allow room on the right hand side for polishing.
Mount on a suitable workbench with access to a power point - use the included clamps to secure it to the bench.
The motor is now fitted with an on/off switch. However, we also recommend running the motor through a surge-protected power board with individual switches - this adds another layer of protection to the motor and allows you to mount the power board in a convenient location.
FREIGHT: this unit ships in two boxes by Toll Ipec courier so please provide a courier suitable delivery address.
1. Intro and Unboxing Video: https://youtu.be/C4MIIeZHYEk
2. Set Up Video: https://youtu.be/NonR23u75HY
3. Maintenance Tips Video: https://youtu.be/HpIUR9rQYos
4. New features on the version 2 machine: https://youtu.be/2jqjj3-dHW0
(960_REZ)
| SKU | 960_REZ |
| Brand | Aussie Sapphire |
| Shipping Weight | 30.0000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.350m |
| Shipping Length | 0.450m |
| Shipping Cubic | 0.110250000m3 |
Rez wheel Cabbing Machine
By: Cameron on 15 September 2025Love the machine. I have had it for a week. Cut a handful of opal, easy to assemble. The only thing I don't like is the screw on off water taps. I will look at changing them to a 1/4 twist tap. Thanks for fast delivery and great machine.
(5)
