Aussie Sapphire AS-6x6 Cabbing Machine, fitted stainless arbor 150mm

In Stock
$2,100.00

3 units in stock


Available Options


Calculate Shipping



Pick-up from store (not shipped) - $0.00
Pickup from our Warehouse in Glen Innes by appointment only. Please advise date/time in order comments.

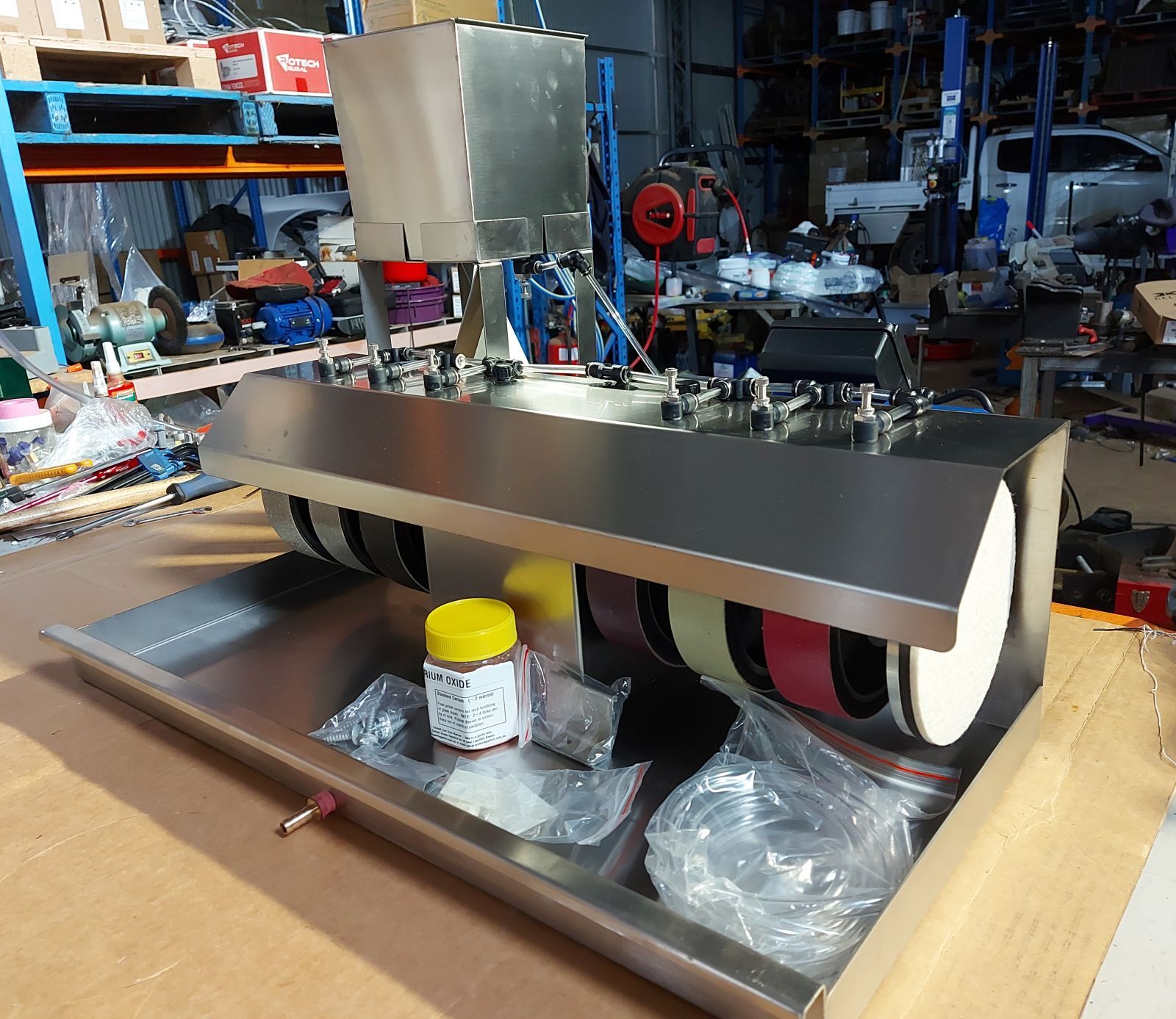

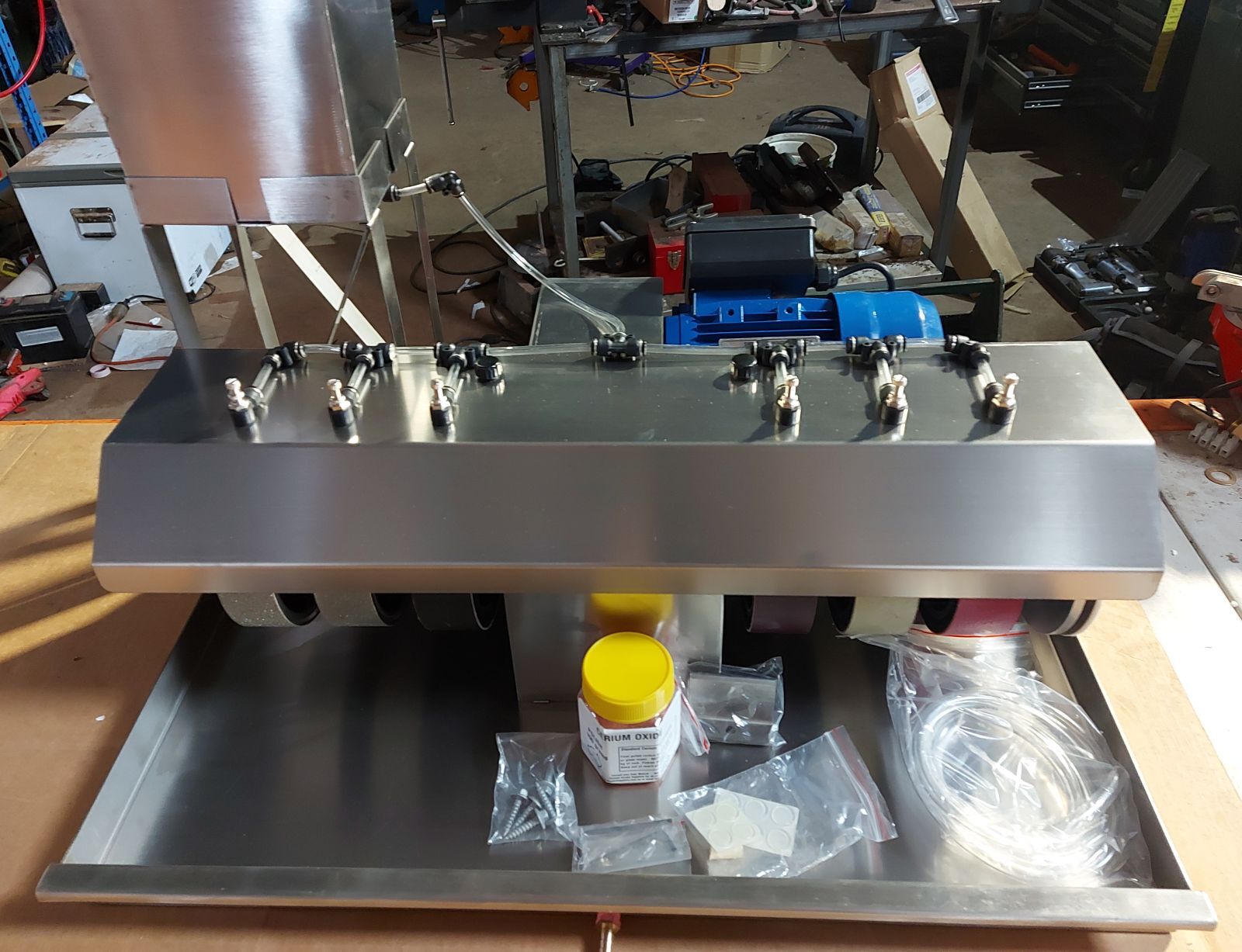

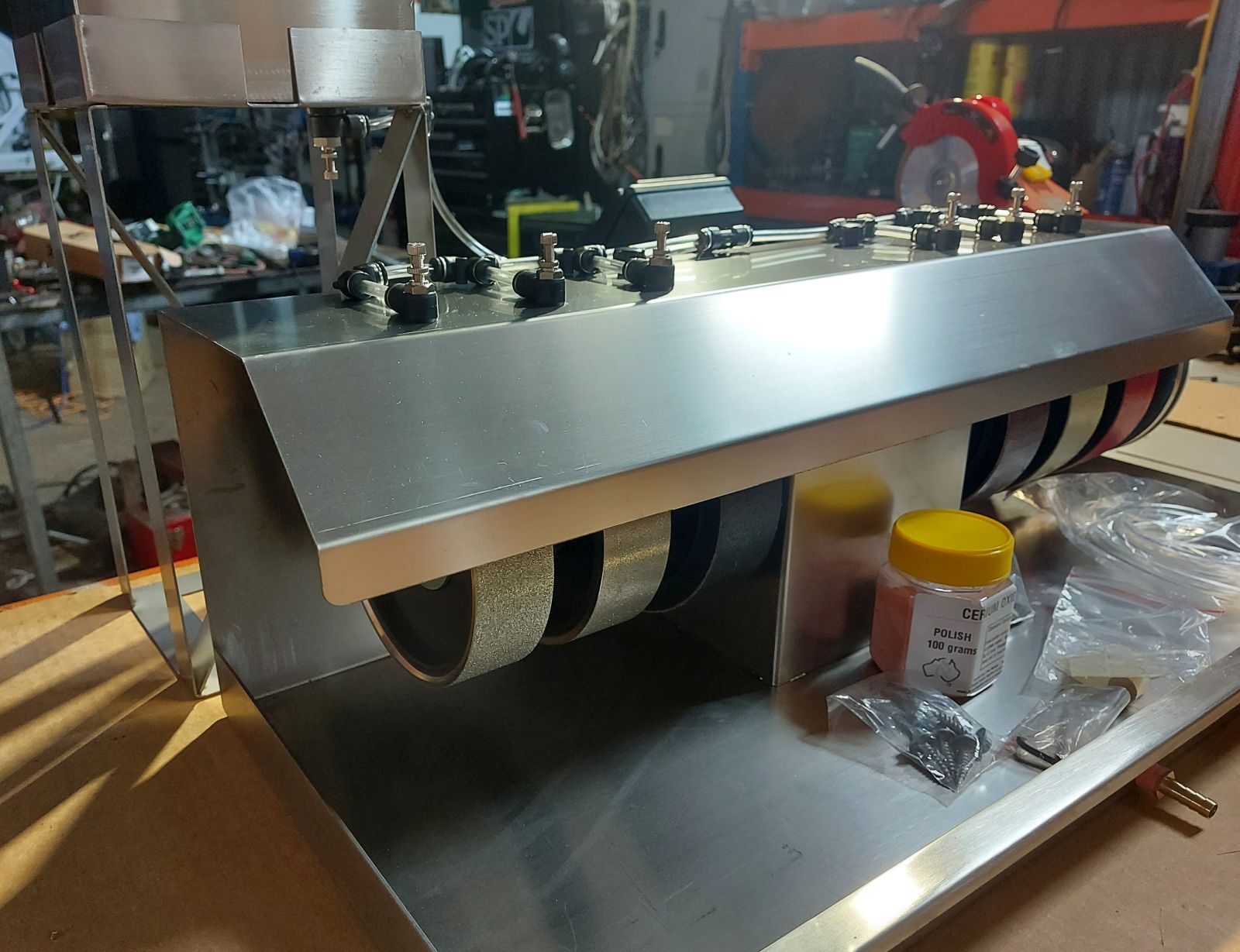

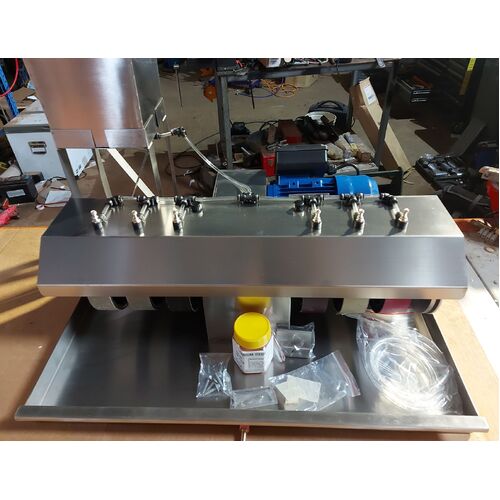

Aussie Sapphire AS-6x6 Cabbing Machine complete with wheels

Stainless Steel, 6 wheel x 6" (150mm) Arbor

IN STOCK NOW FOR IMMEDIATE DELIVERY.

NOTE:  Nova wheels are currently on back order - please contact us for lead time if you want this option.

After some years of very short supply, we have listened to our customers and developed a machine made exclusivey for us to help meet the real demand for an affordable alternative with the quality you need.


Using CNC manufacturing to produce the complete Stainless Steel frame including welding and machining of all parts, consistent quality is obtained. All assembly and test running is carried out in our workshop giving us another quality control point.

FEATURES:
  •  6 individually controlled stainless water taps fed from a separate stainless steel 4 litre water tank (included).
  • Full stainless steel construction with the standard 3/4” shaft used in thousands of machines worldwide for decades.  Shaft is tapped on both ends for 1/4-20 spin-on polish heads on the Left and Right.
  • Sealed for life flex mount bearings are fitted for reduced noise and vibration.

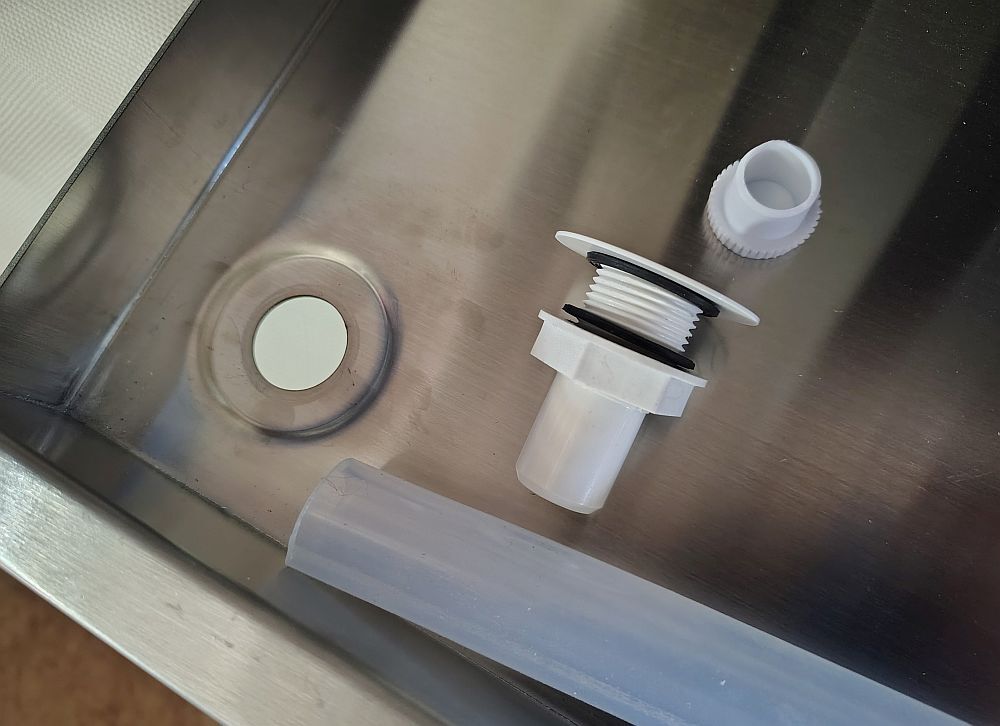

  • The removable top cover has the water kit installed with quality taps and fittings.  Drainage hose is included - you will need to supply a bucket to drain into.

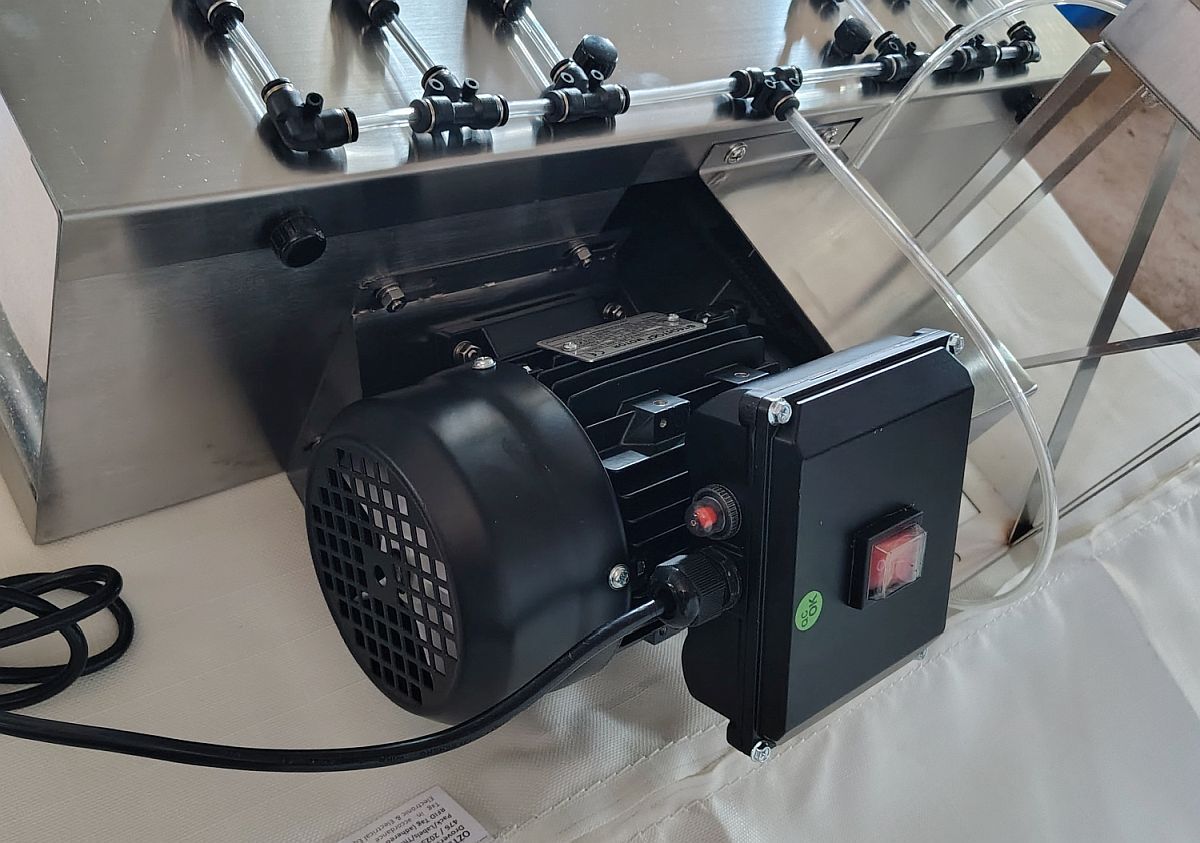

  • 1/2 hp motor (230 Volt) with Australian 3 pin plug.
  • Fitted with 6 x 6" diamond wheels - 2 hard and 4 soft.  Also includes one Right Hand end plate with felt polishing pad.

The AS-6x6 unit comes complete with motor, quality cogged drive belt, belt guard and taper lock motor pulley.   The motor is shipped separately for safe transit and will need to be fitted when unpacked (see our set up video).

The machine is fitted with 6 diamond wheels (150 mm) ready to go - two hard wheels (#80 and #220) and four soft wheels (#280, #600, #1200 and #3000).  Standard soft wheels are fitted by default.

Standard wheels are made in China and sourced from the same factory we have bought from for over 20 years so they are proven in the field.  We have modified the hub widths to be completely interchangeable with both genuine Novas or Cabking wheels without the need to change wheel spacers so you can swap wheel brand at any time without issue.

This machine can be supplied with genuine Nova brand wheels at additional cost (check the option above if you require this).

The package also includes a Right Hand aluminium end plate with rubber and felt pad for polishing - 100 grams cerium oxide is included.

All you need to do is bolt the motor on, secure the machine and water tank to a bench and start cabbing.

Footprint of the machine is 67cm wide and 57 cm deep - allow room on the right hand side for polishing.

 FREIGHT:  this unit ships in two boxes by Toll Ipec courier.

1.  Intro and Unboxing Video:  https://youtu.be/C4MIIeZHYEk
2. Set Up Video:  https://youtu.be/NonR23u75HY
3. Maintenance Tips Video:  https://youtu.be/HpIUR9rQYos

NOTE:  The motor is not fitted with an on/off switch.  We recommend running the motor through a surge-protected power board with individual switches - this adds another layer of protection to the motor and allows you to mount the power board in a location that is more convenient to use when turning the machine on and off.  This avoids the need to lean over the machine to turn on/off and gives additional power points for extra accessories such as lights.


(960)

SKU 960
Brand Aussie Sapphire
Shipping Weight 28.0000kg
Shipping Width 0.700m
Shipping Height 0.350m
Shipping Length 0.450m
Shipping Cubic 0.110250000m3
